    Center Console Aft

    Used by all three flightdeck crew

    Please click below for a more detailed description of this panel

    1
    2
    3
    4
    5
    6

    1. Engine Throttles

    2. Reheat Controls

    3.Roll Pitch and Yaw trim

    4. Windshield Rain dispersal

    5. Standby Nose and visor system

    6. Brakes

    7 & 7a VHF Radio frequency selection

    8. INS (3)

    9. Weather radar control unit

    10. ATC/TCAS Control

    11. ADF (Automatic direction finder) Freq Selection

    12. Radio VHF/HF selection

    13. Ground Call

    14. Air Data system

    15. Standby Landing gear system

    16. Emergency nose release handle


    Back to flightdeck detail
    7
    7a
    8
    9
    10
    11
    12
    13
    14
    15
    16
    2


    Engine throttles

    Back to top


    Re-heat controls

    Back to top


    Roll Pitch and Yaw trim

    Back to top


    Rain dispersal control & Baulk Override handle

    Back to top


    Nose and Visor standby system

    The nose and visor standby system will lower the nose to 12.5 degrees using the yellow hydraulic system.

    When activated a standby nose selector valve is operated and the hydraulic systems are switched from the Green system to the yellow system.
    This is a one off operation for landing only the nose can not be raised using the yellow system and the nose must be "re set" when the aircraft is on the ground.

    Back to top


    Brakes system

    Back to top


    VHF Radio Frequency Selection

    Back to top

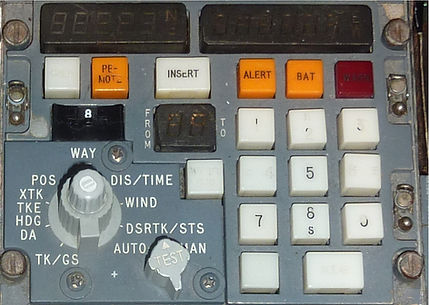

    INS System (number 3)

    Back to top

    Weather radar control unit


    Back to top


    ATC / TCAS Control unit

    Back to top


    ADF Frequency Selection panel

    Back to top


    HF Radio Frequency Selection panel

    Back to top


    Lighting test

    Back to top

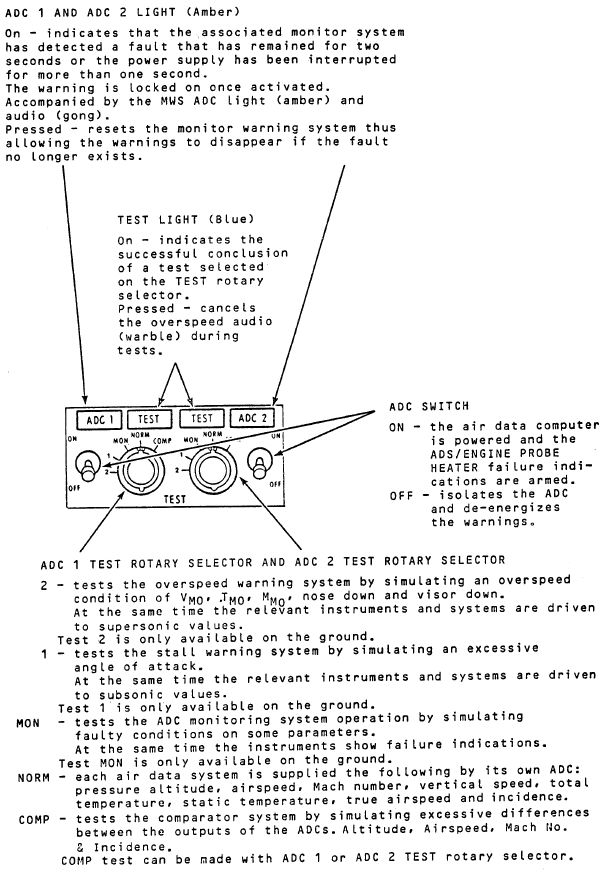

    Air Data system controls

    Back to top


    Standby Landing gear selection

    Back to top


    Emergency Nose system

    The emergency nose release system will lower the visor and drop the nose to 5 degrees when operated.


    Back to top
    Back to flightdeck detail
